Technical Specifications

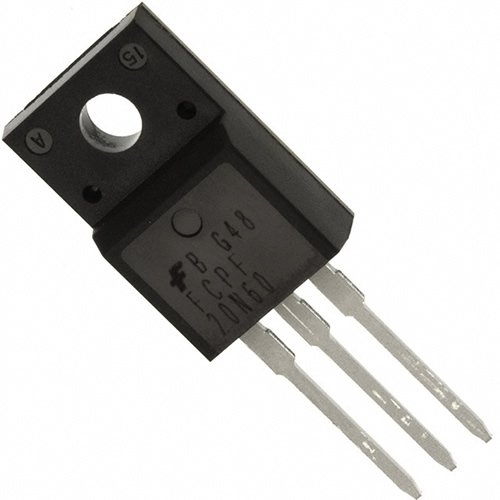

semi FCPF20N60 technical specifications, attributes, and parameters.
| Supply Chain | |
|---|---|
| Lifecycle Status | NRND (Last Updated: 1 year ago) |
| Manufacturer Lifecycle Status | ACTIVE, NOT REC (Last Updated: 1 year ago) |
| Physical | |
| Case/Package | TO-220-3 |
| Contact Plating | Tin |
| Mount | Through Hole |
| Number of Pins | 3 |
| Weight | 2.27 g |
| Technical | |
| Continuous Drain Current (ID) | 20 A |
| Current Rating | 20 A |
| Drain to Source Breakdown Voltage | 600 V |
| Drain to Source Resistance | 190 mΩ |
| Drain to Source Voltage (Vdss) | 600 V |
| Element Configuration | Single |
| Fall Time | 65 ns |
| Gate to Source Voltage (Vgs) | 30 V |
| Input Capacitance | 3.08 nF |
| Max Operating Temperature | 150 °C |
| Max Power Dissipation | 39 W |
| Min Operating Temperature | -55 °C |
| Number of Elements | 1 |
| Power Dissipation | 39 W |
| Rds On Max | 190 mΩ |
| Resistance | 190 MΩ |
| Rise Time | 140 ns |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Threshold Voltage | 5 V |
| Turn-Off Delay Time | 230 ns |
| Turn-On Delay Time | 62 ns |
| Voltage Rating (DC) | 600 V |
| Dimensions | |
| Height | 9.19 mm |
| Length | 10.16 mm |
| Width | 4.7 mm |
| Compliance | |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
